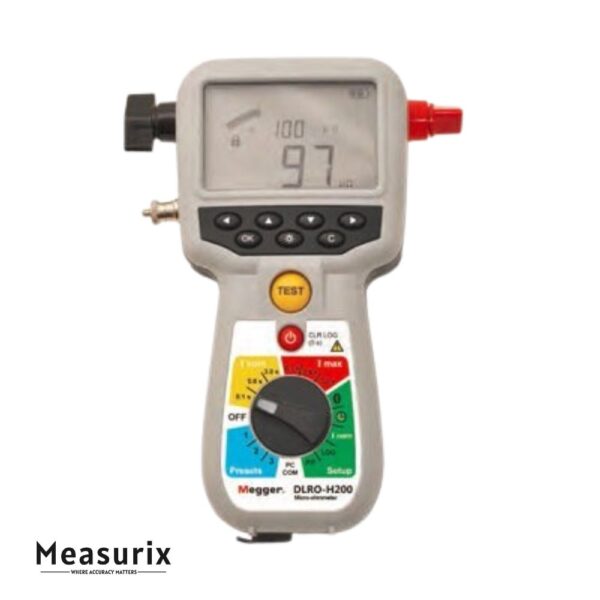

Megger DLRO-H200 Handheld 200 A Micro-Ohmmeter
The Megger DLRO-H200 is a rugged, battery-operated handheld micro-ohmmeter capable of delivering up to ~240 A test current, designed for precise measurement of very low resistances in high-current connections. With features like Bluetooth data transfer, a memory of ~190 results, and a portable form factor (~1 kg), it’s ideal for field use in substations, switchgear maintenance, and other industrial environments.
Description
The DLRO-H200 is engineered specifically for low-resistance measurement in challenging environments where high current, portability, and safety are essential. It’s tailored for testing large contacts, bus-bar joints, circuit-breaker links and heavy-duty connections where resistance needs to be measured accurately under heavy load. The instrument uses an ultra-capacitor discharge system to generate high test currents (nominally up to 200 A, with capability up to ~240 A under certain conditions) while keeping the unit lightweight and safe.
Safety is enhanced via the “DualGround™” method — the device supports testing while the test object remains grounded at both ends, simplifying setup and increasing operator safety. The unit features automatic range selection from ~1 µΩ to 1000 mΩ, a rubber holster for durability, Bluetooth connectivity for results download, and an optional wireless headset to provide audible pass/fail feedback based on user-set thresholds.
Its data logging capability allows ~190 recorded tests (with timestamp) which can be transferred via Bluetooth to PC software for archival or trending. The lightweight nature (~1 kg) and rugged design make it well suited for field technicians needing high current, high accuracy resistance checks in tight or mobile spaces.
Features
-
Up to ~200 A (nominal) DC test current, providing high resolution for very low resistance measurements.
-
Automatic range from ~1 µΩ to 1000 mΩ, suitable for joints, busbars, and other low-resistance connections.
-
DualGround™ testing method: object remains grounded at both ends during measurement for safety and efficiency.
-
Bluetooth® connectivity with included software for data transfer, plus optional wireless headset for audible pass/fail.
-
Handheld, battery-operated design (~1 kg) with rugged rubber-armoured case, built for field use.
-
On-board memory (~190 measurements) with timestamping and later export for trend analysis.
Includes
- 2 x 1.3 m (4 ft) test cables with Kelvin probes(one with trig button)
- Transport case
- Charger
- Rubber holster
- Carrying
- strap
- Belt clip
- DLRO-H200 Win
