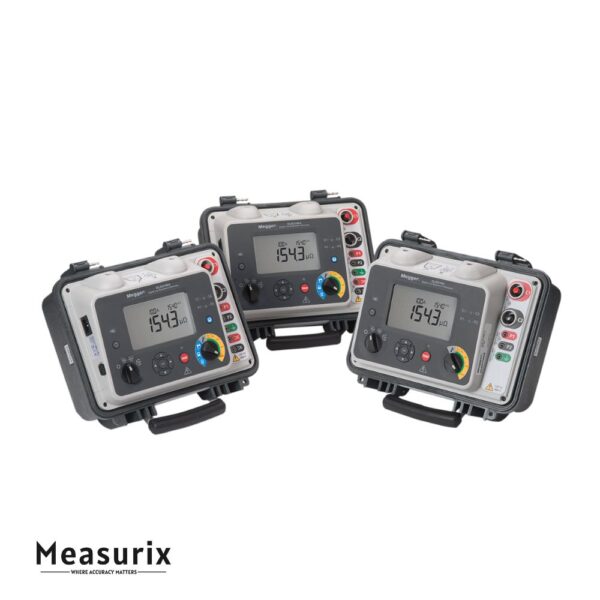

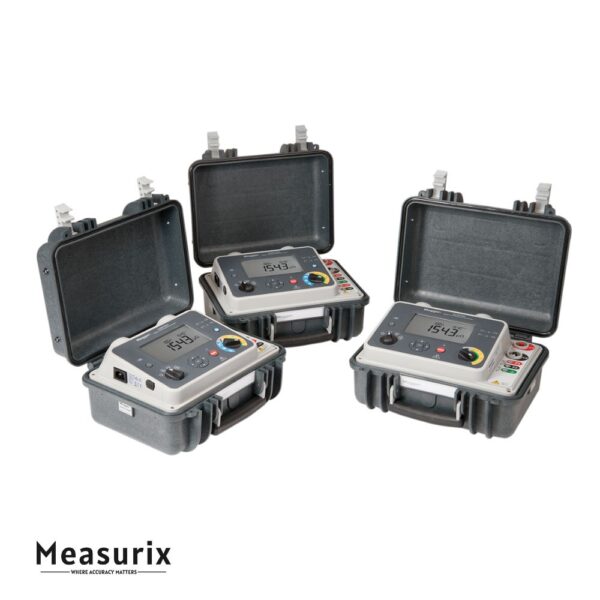

Megger DLRO100 Series of Digital Low Resistance Micro-Ohmmeters

The Megger DLRO100 series offers a range of digital low resistance micro-ohmmeters tailored for demanding testing scenarios. These instruments provide a test current of up to 100 A DC, facilitating accurate resistance measurements from 0.1 μΩ to 1.999 Ω with a resolution of 0.1 μΩ. The series includes various models, each equipped with features to enhance testing efficiency and safety.

The DLRO100 series is powered by an integral Li-ion battery, delivering a constant 100 A current for up to 200 manual or automatic tests on a single charge. This battery-powered design enables testing in locations without access to mains power, offering flexibility for field operations. Additionally, the instruments feature a smooth DC output, minimizing ripple and ensuring stable readings during circuit breaker testing.

Safety is a paramount consideration in the design of the DLRO100 series. The instruments are rated for CAT IV 600 V / 500 VDC operation, providing protection against electrical hazards. The DualGround™ feature allows for testing with both sides of the equipment under test grounded, enhancing safety during measurements. Furthermore, the IP54-rated enclosure offers protection against dust and moisture, ensuring reliable performance in various environmental conditions.

User-friendly interfaces, including large, clear LCD displays with backlighting, facilitate easy operation in all lighting conditions. The instruments also offer optional Bluetooth connectivity for wireless communication and remote control capabilities via USB, streamlining data management and analysis.

Features

• High Test Current: Delivers up to 100 A DC test current for precise low-resistance measurements.

• Wide Measurement Range: Measures resistance from 0.1 μΩ to 1.999 Ω with a resolution of 0.1 μΩ.

• Battery-Powered Operation: Integral Li-ion battery supports up to 200 manual or automatic tests per charge.

• Smooth DC Output: Minimizes ripple, ensuring stable readings during circuit breaker testing.

• Safety Ratings: CAT IV 600 V / 500 VDC rated for protection against electrical hazards.

• DualGround™ Testing: Allows testing with both sides of the equipment under test grounded for enhanced safety.

• IP54 Enclosure: Offers protection against dust and moisture, ensuring reliable performance in various environments.

• User-Friendly Interface: Large, clear LCD display with backlighting for easy operation in all lighting conditions.

• Optional Bluetooth Connectivity: Enables wireless communication for data transfer and remote control.

• Remote Control via USB: Allows for remote operation and data management through a PC or laptop.

Includes

• Your Choice of Megger DLRO100E/EB Low Resistance Ohmmeter
• Certificate of Test
• Quick Start Guide
• Calibration Certificate
• CD with User Guide
• Line-Powered Lead
