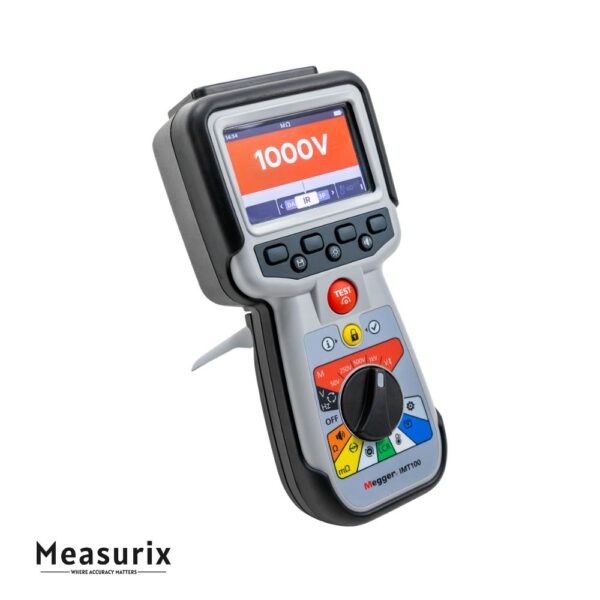

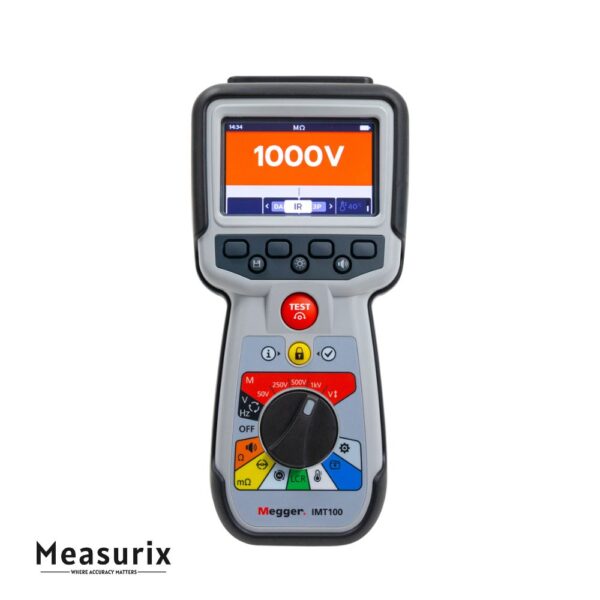

Megger IMT100 Industrial Multi-Tester

The Megger IMT100 is a comprehensive handheld testing instrument that combines multiple functionalities into a single device, streamlining the testing process for professionals in various fields. Designed for photovoltaic (PV) systems, electric vehicles (EVs), and industrial applications, the IMT100 offers a wide range of testing capabilities. It features insulation resistance testing up to 200 GΩ, low resistance bonding tests, AC/DC voltage measurements, and more. The instrument’s user-friendly interface includes a full-color graphic display and a rotary dial control, ensuring ease of operation in the field. With its rugged IP54-rated housing, the IMT100 is built to withstand harsh environmental conditions, making it a reliable choice for professionals requiring accurate and efficient testing solutions.

Features

• Comprehensive Testing Capabilities: Offers over 13 testing functions, including insulation resistance, low resistance bonding, AC/DC voltage measurements, and more.

• High Insulation Resistance Measurement: Measures insulation resistance up to 200 GΩ, suitable for various applications.

• Low Resistance Bonding Tests: Performs low resistance bonding tests with a range of 1 mΩ to 10 Ω, ensuring reliable connections.

• AC/DC Voltage Measurements: Measures AC voltage from 10 mV to 1000 V and DC voltage from 0 to 1000 V, with TRMS capability.

• Motor Direction of Rotation Test: Determines the direction of rotation of motors, aiding in installation and maintenance.

• LCR Meter Functionality: Measures inductance, capacitance, and resistance, with selectable frequencies up to 1000 Hz.

• Temperature Measurement: Includes a thermocouple for temperature measurements and insulation resistance compensation.

• Data Storage and Download: Stores up to 256 test results, which can be downloaded via USB for documentation and analysis.

• Rugged Design: IP54-rated housing ensures durability and protection against dust and water ingress.

• User-Friendly Interface: Features a full-color graphic display and intuitive controls for ease of use in the field.

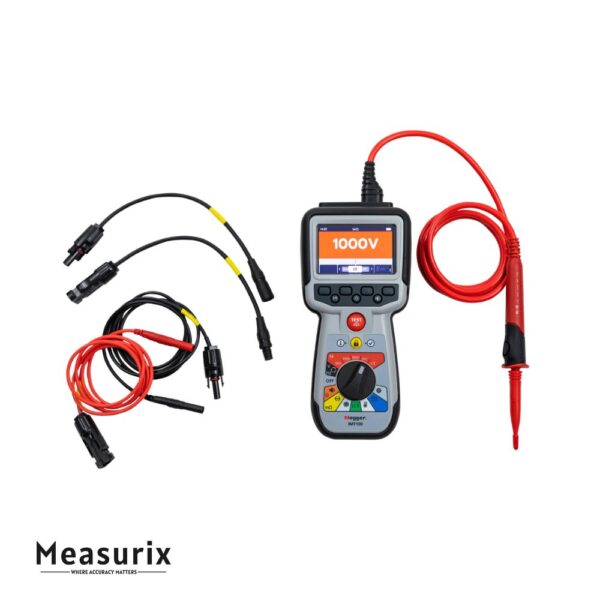

Includes

• IMT100 Industrial Multi Tester
• Hook strap assembly
• Multipurpose industrial carrycase
• SP5 remote probe
• Temperature probe, T type CAT III 600V
• IR lead set (comprising of):
  3 x Grabber Clips (Red, Black, and Blue) CAT III 1000V, CAT IV 600V
  3 x 4mm Test leads, 2m, 1 end Right Angle, 1 end straight (red, black and blue), CAT III 1000V, CAT IV 600V
  3 x Test probes (red, black and blue), long reach (100mm), CAT III 1000V, CAT IV 600V
• Kelvin clip lead set CAT III 600V (comprising of):
  2 x Kelvin Clip leads, 2 meters, 4mm Right Angled Connectors (4), Single (2-core) cable
• Kelvin probe lead set CAT III 600V (comprising of):
  2 x 2m Kelvin Probe leads, 4 x 4mm Right Angled Connectors, a Single (2-core) cable
• Replaceable Kelvin Probe Pins (Pack of 4)
• PV Test Lead Set adaptors (comprising of):
  2 x MC4-type one red and one black connector adaptors, 2 x MC3-type black connector adaptors
• IMT100 certificate of test (EN/FR/ES/DE)
• IMT100 certificate of calibration
• 6 x AA rechargeable batteries NiMH (fitted)
• Battery charger
• Quick start guide
