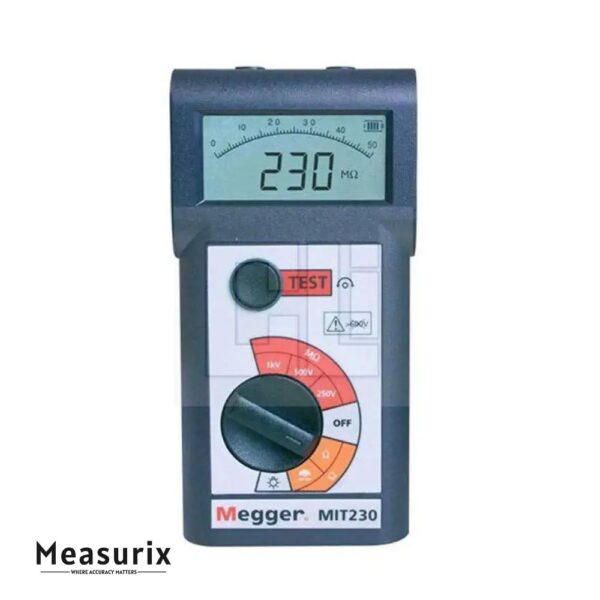

Megger MIT230 Pocket-Sized Insulation and Continuity Testers
The Megger MIT230 is a compact, pocket-sized insulation and continuity tester designed for professionals requiring portability without compromising on performance. It offers insulation resistance testing up to 1000 MΩ and continuity testing at 200 mA down to 0.01 Ω. The device features a combination of digital and analog displays, providing clear readings and the ability to observe circuit charge and discharge characteristics. With safety features like live circuit detection, test inhibit, and a built-in voltmeter that activates when voltages above 25 V are present, along with a CAT III 600 V safety rating, the MIT230 is suitable for various electrical testing applications.
Description
The Megger MIT230 is engineered for professionals who need a portable yet reliable testing instrument. Its compact design allows for easy transport and storage, making it ideal for fieldwork. The tester provides insulation resistance measurements up to 1000 MΩ, ensuring accurate assessments of electrical insulation. Continuity testing is performed at 200 mA, with a measurement range down to 0.01 Ω, facilitating quick and precise evaluations of conductive paths. The combination of digital and analog displays offers clear readings and the ability to observe circuit charge and discharge characteristics. Safety features include live circuit detection, test inhibit, and a built-in voltmeter that activates when voltages above 25 V are present. The tester operates within a temperature range of –10 °C to +55 °C, ensuring functionality in diverse environmental conditions. Powered by six AA batteries, either alkaline or rechargeable, the MIT230 is designed for extended use in various testing scenarios.
Features
- Insulation Resistance Measurement: Up to 1000 MΩ, suitable for assessing electrical insulation quality.
- Continuity Testing: At 200 mA, with a measurement range down to 0.01 Ω, facilitating quick and precise evaluations of conductive paths.
- Dual Display: Combines digital and analog displays for clear readings and the ability to observe circuit characteristics.
- Safety Features: Includes live circuit detection, test inhibit, and a built-in voltmeter for voltages above 25 V.
- Operating Temperature Range: –10 °C to +55 °C, allowing use in various environmental conditions.
- Power Source: Operates on six AA batteries, either alkaline or rechargeable, for extended use.
- Compact Design: Lightweight and portable, ideal for fieldwork and easy storage.
- Compliance: Meets international safety standards, ensuring reliable and safe operation.
Includes
- Lead set with prods and clips
- Carry case
