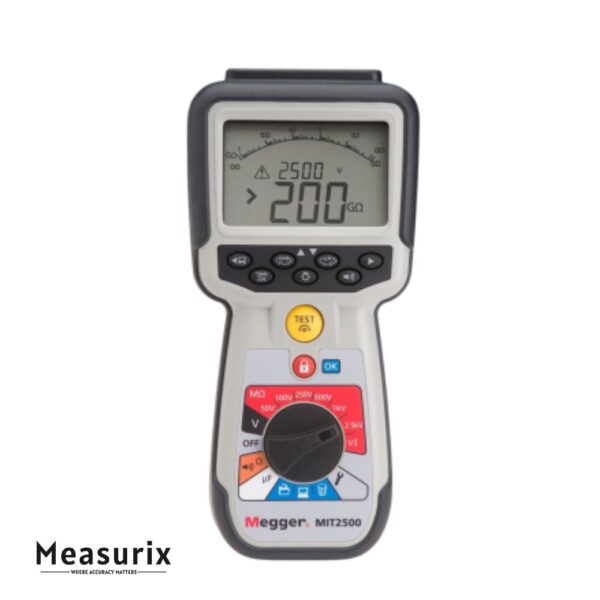

Megger MIT2500 High voltage handheld insulation and continuity tester
The Megger MIT2500 is a high-voltage handheld insulation and continuity tester designed for industrial and electrical applications where operating voltages exceed 1000 V. It offers insulation resistance testing up to 2.5 kV and 200 GΩ, with adjustable test voltages ranging from 50 V to 2500 V. The device features a guard terminal for high resistance accuracy and provides stabilized insulation test voltage to ensure consistent results. Additionally, it includes single-range, faster continuity testing from 0.01 Ω to 1 MΩ, and is suitable for CAT IV 600 V applications.
Description
The Megger MIT2500 is engineered for professionals requiring reliable insulation and continuity testing in high-voltage environments. Its compact, handheld design allows for portability without compromising on performance. The tester’s insulation resistance capabilities up to 200 GΩ ensure thorough assessments of electrical insulation integrity. The adjustable test voltage feature provides flexibility to accommodate various testing requirements, while the guard terminal enhances measurement accuracy by minimizing surface leakage effects. With its stabilized insulation test voltage, the MIT2500 delivers consistent and precise results throughout the testing process. The device also offers rapid continuity testing, facilitating efficient verification of electrical connections. Designed to meet CAT IV 600 V safety standards, it ensures safe operation in high-voltage applications.
Features
- High Insulation Resistance Measurement: Capable of testing up to 200 GΩ, suitable for assessing the integrity of electrical insulation.
- Adjustable Test Voltage: Offers selectable test voltages from 50 V to 2500 V, providing versatility for various testing scenarios.
- Guard Terminal: Incorporates a guard terminal to enhance measurement accuracy by reducing surface leakage currents.
- Stabilized Test Voltage: Maintains a consistent test voltage throughout the measurement process to ensure reliable results.
- Fast Continuity Testing: Provides single-range continuity testing from 0.01 Ω to 1 MΩ, facilitating quick verification of electrical connections.
- Safety Compliance: Meets CAT IV 600 V safety standards, ensuring safe operation in high-voltage environments.
- Portable Design: Features a compact, handheld form factor for ease of use and transport.
- Rechargeable Power Options: Supports rechargeable batteries, offering cost-effective and environmentally friendly power solutions.
Includes

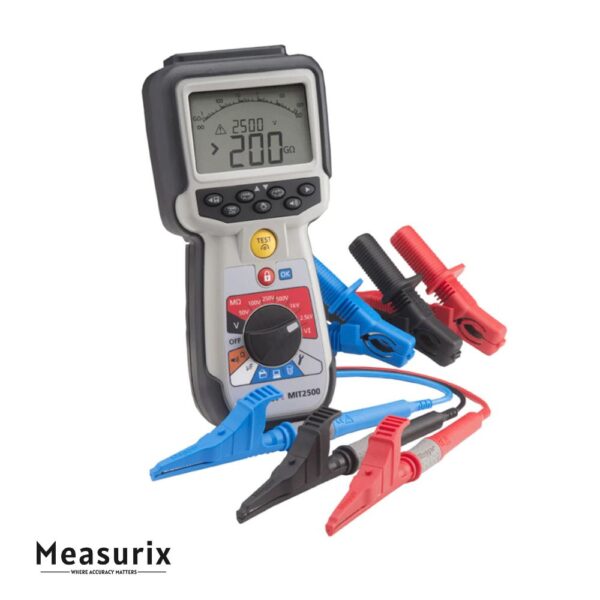

- Megger MIT2500 Insulation Tester
- Red/Black/Blue Silicone Test Leads with Probes and Clips
- 2.5kV Red/Black/Blue Silicone Test Leads with Clips
- Owners Information CD
- 6 x AA Alkaline Batteries
- Carrying Case
