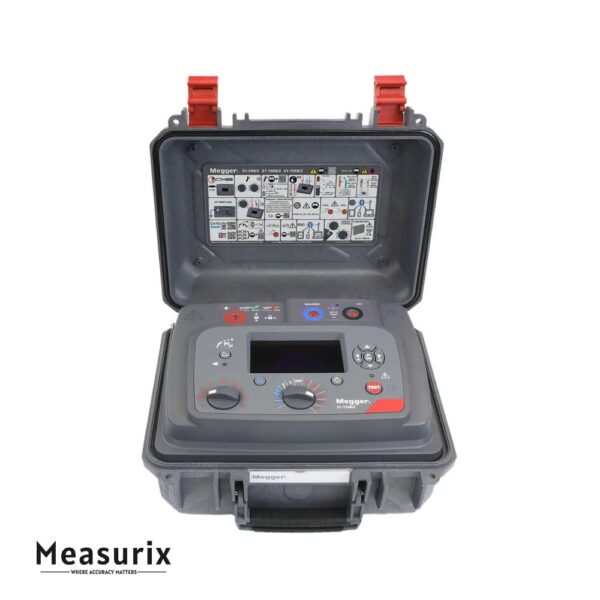

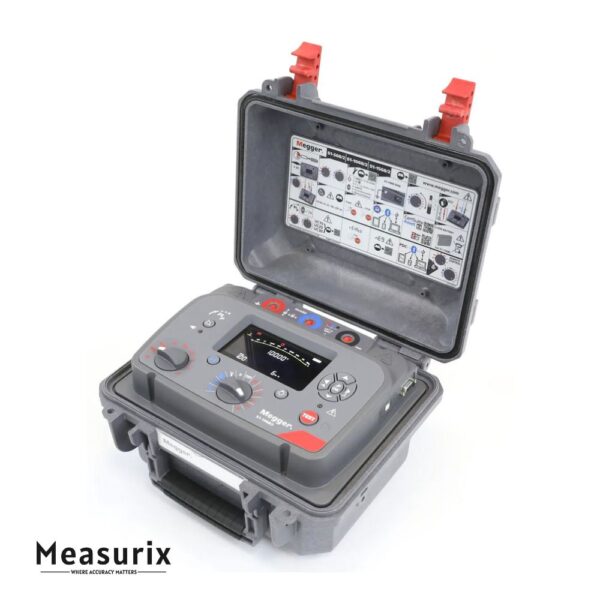

Megger S1-1568/2 Expert15 kV insulation resistance testers
The Megger S1‑1568/2 Expert is a high‑performance 15 kV insulation resistance tester designed for demanding industrial and utility applications. It offers selectable test voltages up to 15 kV, advanced diagnostic capabilities, and robust safety features, making it ideal for testing high‑voltage equipment such as cables, transformers, and switchgear.
Description
The S1‑1568/2 Expert provides comprehensive insulation testing with selectable DC test voltages of 250V, 500V, 1000V, 2500V, 5000V, 10000V, and 15000V. It measures insulation resistance up to 35 TΩ at 15 kV, ensuring accurate assessment of insulation quality. The tester includes advanced diagnostic modes such as Insulation Resistance (IR), Dielectric Absorption Ratio (DAR), Polarization Index (PI), Dielectric Discharge (DD), Step Voltage (SV), Ramp Voltage, and Partial Discharge (PDC) testing capabilities. It features a high output current of 6 mA for rapid charging of capacitive loads and offers 8 mA noise rejection with four software filter options to ensure stable readings in electrically noisy environments. The S1‑1568/2 Expert is safety‑rated to CAT IV 1000V up to 4000 meters altitude, providing reliable operation in harsh conditions. It supports remote control via USB and Bluetooth®, allowing for safe operation from a distance. The tester is compatible with CertSuite Asset software for data analysis and reporting.
Features
- Selectable Test Voltages: Offers test voltages of 250V, 500V, 1000V, 2500V, 5000V, 10000V, and 15000V to accommodate various insulation systems.
- High Measurement Range: Measures insulation resistance up to 35 TΩ at 15 kV, suitable for high‑quality insulation assessment.
- Advanced Diagnostic Modes: Includes IR, DAR, PI, DD, SV, Ramp Voltage, and PDC testing capabilities for comprehensive insulation evaluation.
- High Output Current: Provides 6 mA output current for rapid charging of capacitive loads, reducing test time.
- Noise Rejection: Features 8 mA noise rejection with four software filter options to ensure stable readings in noisy environments.
- Safety Ratings: CAT IV 1000V safety rating up to 4000 meters altitude, ensuring reliable operation in harsh conditions.
- Remote Control: Supports remote control via USB and Bluetooth® for safe operation from a distance.
- Data Analysis Compatibility: Compatible with CertSuite Asset software for data analysis and reporting.
- Dual‑Case Design: Features a rugged dual‑case design with an IP rating to protect against moisture and dust ingress.
- Quick‑Start Guide: Includes a graphical quick‑start guide inside the lid for easy setup and operation.
Includes
- 1 \× 3 m lead set with extra-large insulated clips (rated for 15 kV use)
- Screened USB cable with filters
- Remote control indicator beacon
- Power lead
- Quick start guide
- CertSuite Asset Lite software access
