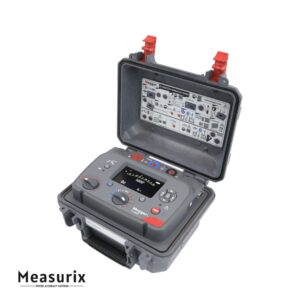

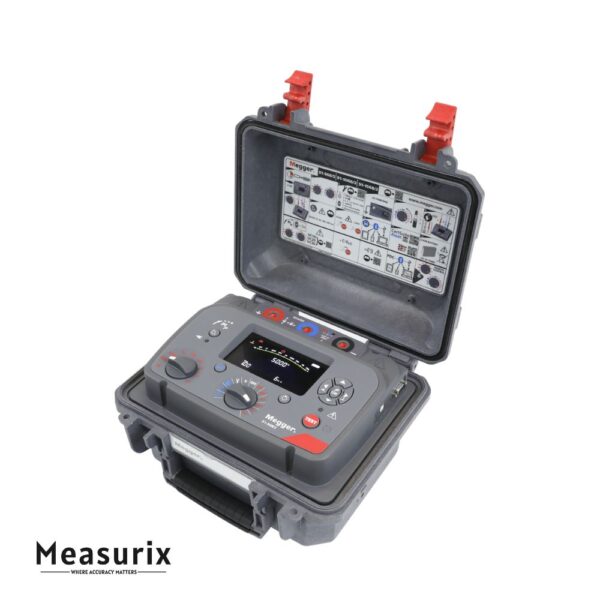

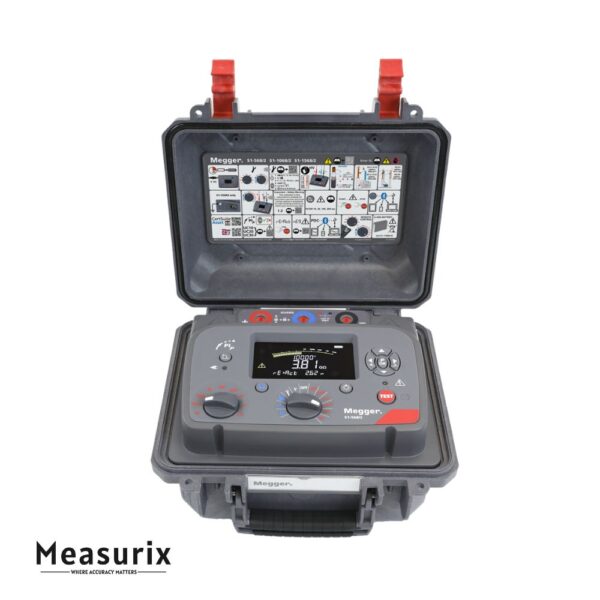

Megger S1-568/2 Expert 5 kV insulation resistance testers

The S1-568/2 Expert series offers a comprehensive toolset for insulation testing of cables, switchgear, transformers, motors, and other critical electrical assets. With selectable DC test voltages up to 5 000 V, it supports measurement of insulation resistance into the multi-teraohm range, making it suitable for verifying high-quality insulation systems. It incorporates an adaptive noise filter and 8 mA noise immunity to maintain stable readings in environments with significant interference. Key diagnostic modes include insulation resistance (IR), dielectric absorption ratio (DAR), polarization index (PI) (with PI Predictor™ acceleration), dielectric discharge (DD), step-voltage and ramp tests, and polarization/depolarization current (PDC) capability when used with compatible software. The unit features remote control via Bluetooth® or USB, enabling the operator to conduct tests from a safe distance—ideal for arc-flash or high-voltage zones. Designed with safety and durability in mind, it has a rugged dual-case housing, CAT IV/CAT III high-voltage rated terminals, and supports operation from either internal battery or AC mains supply. This makes it well suited for repeat inspections, commissioning, and preventative maintenance of high-voltage assets.

Features

• Selectable DC test voltages up to 5 kV for broad insulation systems.
• Insulation resistance measurement into the teraohm range for high-quality insulation assessment.
• Advanced diagnostic test modes including IR, DAR, PI (with PI Predictor™), DD, step-voltage and ramp tests.
• Adaptive filter technology and 8 mA noise immunity for accurate readings in electrically noisy environments.
• Remote instrumentation via Bluetooth® or USB, allowing tests from a safe distance.
• Rugged dual-case construction with high safety-rated terminals (CAT IV/CAT III) suitable for industrial HV use.
• Guard terminal support to eliminate surface leakage currents and improve measurement accuracy.
• Dual-power capability: internal battery or AC mains operation for flexibility on-site.
• Large easy-to-read display and intuitive controls (dual rotary selectors), designed for field use.
• Asset-management friendly: onboard memory and data logging compatible with export software for trending and reporting.

Includes

• 1 × 3 m lead set with medium insulated clips (rated for 5 kV use)
• Screened USB cable with filters
• Remote control indicator beacon
• Power lead
• Quick start label
• CertSuite Asset Lite software
