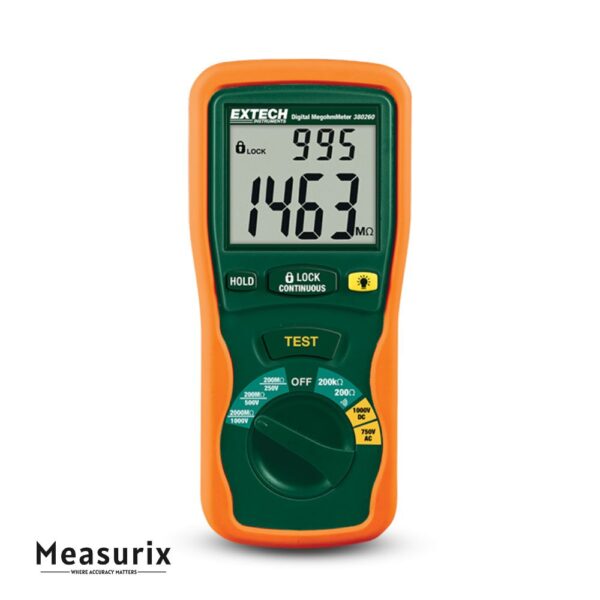

Extech 380260 Autoranging Digital Megohmmeter
The Extech 380260 is a versatile and user-friendly autoranging digital megohmmeter designed for professionals requiring accurate insulation resistance measurements. It offers selectable test voltages of 250V, 500V, and 1000V, with insulation resistance measurement capabilities up to 2000MΩ. Additionally, it provides AC and DC voltage measurement functions, making it suitable for a wide range of electrical testing applications.
Description
The Extech 380260 Autoranging Digital Megohmmeter is engineered to deliver precise insulation resistance measurements across a wide voltage range. With selectable test voltages of 250V, 500V, and 1000V, it allows for testing insulation resistance up to 2000MΩ, accommodating various electrical systems and components.
In addition to insulation resistance testing, the 380260 offers AC and DC voltage measurement capabilities, enabling users to assess both insulation and operational voltage levels. The device features a large, backlit dual display that simultaneously indicates test voltage output and insulation resistance, ensuring clear visibility of readings even in low-light conditions.
For enhanced safety and convenience, the tester includes a low resistance function for testing connections, an automatic discharge circuit to safely discharge test voltage after measurements, and a lock power-on feature for extended test times. The data hold function allows users to freeze the displayed reading for easy recording.
The tester is powered by six AA batteries and comes complete with heavy-duty test leads, an alligator clip test lead, a hanging strap, and a hard carrying case, providing all necessary tools for efficient testing.
Features
- Selectable Test Voltages: 250V, 500V, and 1000V for versatile insulation testing.
- High Insulation Resistance Measurement: Up to 2000MΩ to assess insulation integrity.
- AC and DC Voltage Measurement: Allows for comprehensive electrical testing.
- Large Backlit Dual Display: Simultaneously shows test voltage output and insulation resistance.
- Low Resistance Function: For testing connections and verifying continuity.
- Automatic Discharge Circuit: Safely discharges test voltage after measurements.
- Lock Power-On Feature: Enables extended test times without holding the test button.
- Data Hold Function: Freezes the displayed reading for easy recording.
- Portable Design: Compact and lightweight for easy handling.
- Complete Kit: Includes test leads, batteries, hanging strap, and carrying case for convenience.
Includes
- Test leads
- Carrying case
- 6 AA batteries
