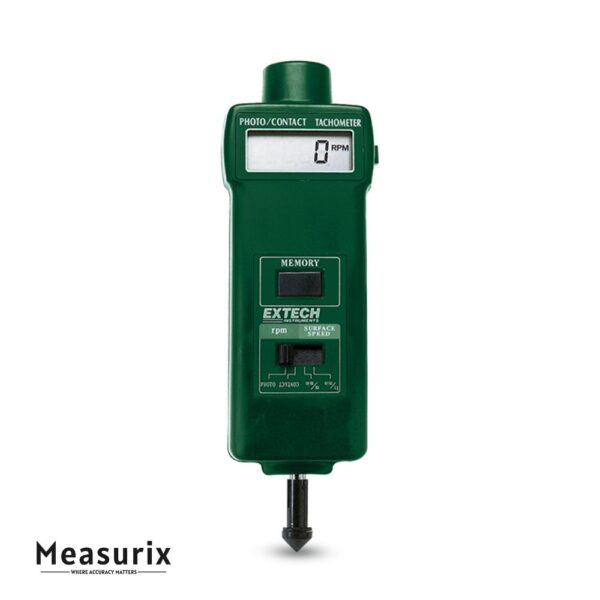

Extech 461895 Combination Contact/Photo Tachometer

This model handles contact mode measurements from approximately 0.5 rpm up to about 20,000 rpm, and non-contact photo mode measurements from approximately 5 rpm up to nearly 100,000 rpm. It also includes a surface-speed measurement mode for linear speeds (ft/min or m/min) using wheel attachments. The instrument is built with a quartz-crystal time base and microprocessor, delivering accuracy around ±0.05 % of reading. The display is a large five-digit LCD that suppresses leading zeros and flips orientation depending on mode so readings remain easily readable. The non-contact mode uses visible light and works up to about 6 inches (~150 mm) from the target. The unit comes with accessories including reflective tape for photo mode, contact tips, wheel for surface speed, batteries and carrying case. It is targeted at maintenance, production, and inspection tasks where both contact and non-contact measurements are required, but where the extended distance of a laser is not necessary.

Features

• Hybrid measurement modes: contact (~0.5 to ~19,999 rpm) and visible-light photo non-contact (~5 to ~99,999 rpm).

• Superior accuracy: approx. ±0.05 % of reading +1 digit, with resolution down to 0.1 rpm in lower speed ranges.

• Linear surface-speed capability via contact wheel: ~0.2 to ~6,560 ft/min (≈0.05 to ~1,999 m/min).

• Display orientation reverses between modes to optimize readability in either contact or photo measurement.

• Large 5-digit LCD display (≈0.4″ / 10 mm character height) for clarity in field use.

• Memory function capturing last reading, maximum and minimum during measurement sessions.

• Visible-light non-contact range up to ~6 inches from target, ideal for routine maintenance or compact setups.

Includes

• Wheels for linear surface speed (0.2 to 6560 ft/m; 0.05 to 1999.9 m/m) or RPM measurements
• 4 AA batteries, 23in. (0.6m) reflective tape
• Carrying case
