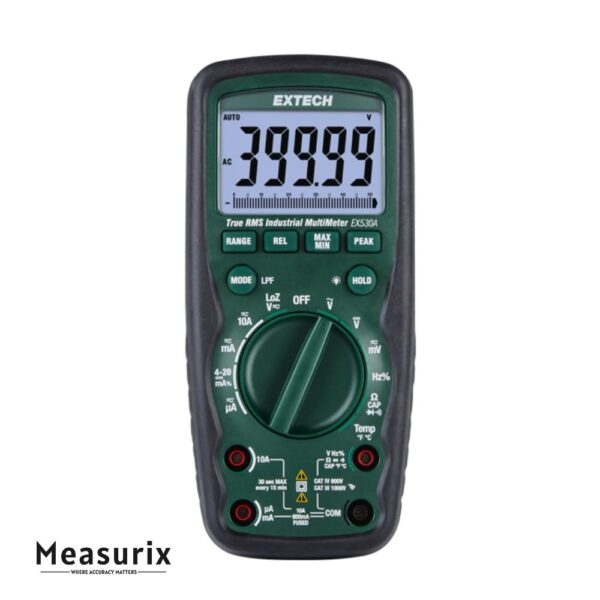

Extech EX530A Heavy-Duty True RMS Industrial Multimeter

The Extech EX530A Heavy Duty True RMS Industrial Multimeter combines advanced measurement capabilities with a robust design, making it suitable for a variety of professional applications. It measures AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance, capacitance, frequency (both electrical and electronic), duty cycle, temperature (via a Type K thermocouple), diode, and continuity. The multimeter’s 50,000-count display provides high resolution, while its ±0.06% basic accuracy ensures reliable readings. For enhanced functionality, it includes a low-pass filter for accurate measurements in the presence of variable frequency drives (VFDs), a low impedance (LoZ) mode to eliminate ghost voltages, and a bar graph display for dynamic signal analysis. The EX530A’s rugged construction features an IP67 rating, making it waterproof and dustproof, and it is drop-tested to withstand falls from up to 2 meters (6.5 feet). Safety is prioritized with 1000V input protection on all functions and a CAT IV-600V safety rating. The multimeter also offers convenient features such as peak hold, min/max, relative mode, data hold, and auto power-off. It comes complete with double-molded test leads, a Type K thermocouple temperature probe (-45°C to 760°C), a bead wire temperature probe (-20°C to 250°C), a magnetic hanging strap, a carrying case, and a 9V battery, ensuring readiness for immediate use.

Features

• True RMS Measurements: Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.
• Comprehensive Measurement Range: Measures AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance, capacitance, frequency, duty cycle, temperature, diode, and continuity.
• Dual Sensitivity Frequency: Offers 0.001 Hz to 10 MHz sensitivity for electrical frequencies and 0.01 Hz to 1 kHz for electronic frequencies.
• Type K Thermocouple Input: Measures temperatures from -45°C to 760°C (-50°F to 1400°F) with a Type K thermocouple.
• High-Resolution Display: Features a 50,000-count backlit LCD screen with bar graph for clear visibility and dynamic signal analysis.
• Durable Construction: IP67-rated for water and dust resistance; drop-tested to withstand falls from up to 2 meters (6.5 feet).
• Safety Features: Includes 1000V input protection on all functions and a CAT IV-600V safety rating.
• Convenient Functions: Equipped with peak hold, min/max, relative mode, data hold, and auto power-off functions for ease of use.
• Included Accessories: Comes with double-molded test leads, Type K thermocouple, bead wire temperature probe, magnetic hanging strap, carrying case, and 9V battery.
• Warranty: Backed by a 3-year warranty, ensuring reliability and customer satisfaction.

Includes

• 1 x EX530A
• 1 x Pouch
• 1 x Set of double molded Test Lead
• 1 x Type K bead wire temperature
• 1 x Magnetic hanging
• 1 x 9V Battery
• 1 x User Manual
