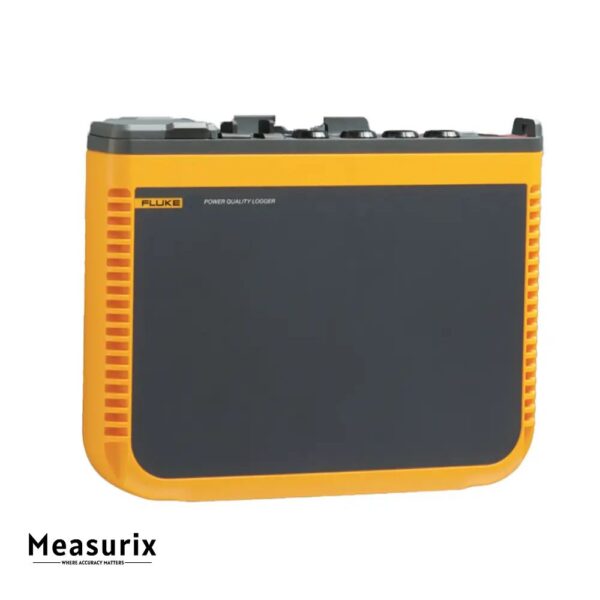

Fluke 1748 Three-Phase Power Quality Loggers

The Fluke 1748 Three-Phase Power Quality Logger is a high-performance tool engineered for technicians and engineers who require detailed power quality analysis and energy management. It provides a comprehensive solution to troubleshoot, monitor, and optimize electrical power distribution systems. The device records over 500 parameters, including essential power quality metrics such as voltage and current harmonics, interharmonics, unbalance, flicker, and rapid voltage changes, meeting the demanding IEC 61000-4-30 Class A Edition 3 standard.

The Fluke 1748 comes with advanced capabilities, including event waveform capture that stores waveform data along with timestamps and severity information, making it easier to diagnose the root causes of power quality issues like dips, swells, and transients. The logger is equipped with Ethernet, USB, and Wi-Fi connectivity for flexible setup, real-time monitoring, and high-speed data download, minimizing the need for onsite intervention.

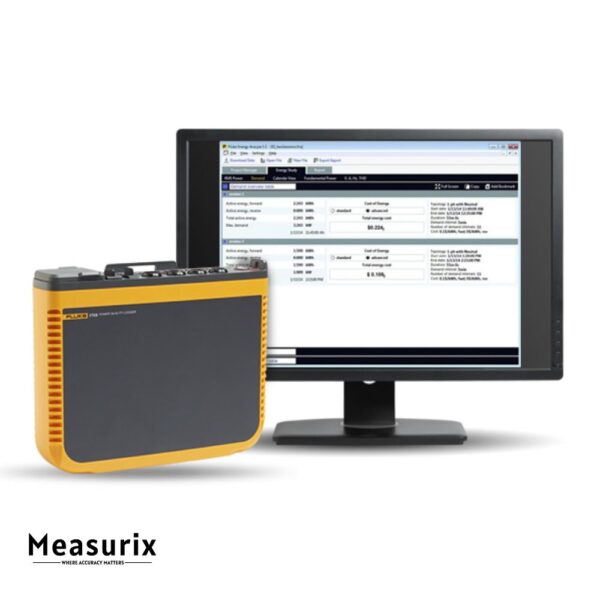

The device features Fluke Energy Analyze Plus Software, which allows for easy creation of one-click, standardized reports in line with industry standards such as EN 50160, IEEE 519, and GOST 33073. With a rugged, compact design, and a 600 V CAT IV/1000 V CAT III safety rating, the Fluke 1748 is built for use in harsh environments, ensuring durability and reliability. The device also includes an intelligent verification function, which automatically checks and corrects connections, reducing measurement errors.

The Fluke 1748 is a versatile, easy-to-use logger for professionals seeking precise, real-time data on power quality and energy consumption. Whether for energy audits, network analysis, or troubleshooting, it provides actionable insights to improve system reliability and reduce energy costs.

Features

• Comprehensive Parameter Logging: Records over 500 parameters, including voltage, current, harmonics, flicker, and rapid voltage changes.
• Event Waveform Capture: Captures event waveforms with timestamps and severity data to aid in pinpointing power quality issues.
• Standard Compliance: Fully compliant with IEC 61000-4-30 Class A Edition 3 standards for rigorous power quality measurement.
• Connectivity: Supports Wi-Fi, Ethernet, and USB for easy setup, data transfer, and real-time monitoring.
• Fluke Energy Analyze Plus Software: Bundled software for one-touch standardized reporting and detailed power quality analysis (EN 50160, IEEE 519, etc.).
• Rugged Design: Built to withstand tough environments with a 600 V CAT IV/1000 V CAT III safety rating.
• Intelligent Verification: Automatically checks and verifies connections, reducing setup errors and uncertainty.
• Flexible Power Supply: Can be powered directly from the measured circuit or via an AC adapter, offering versatile installation options.
• User-Friendly Installation: Features tangle-free voltage cables and thin, flexible current probes for installation in confined spaces.
• Compact Size: Measures 23 cm x 18 cm x 5.4 cm (9.1 x 7.1 x 2.1 in) and weighs 1 kg (2.2 lbs), making it portable and easy to handle.

Includes

• Fluke Logger
• Soft storage bag/case
• Voltage test lead (3-phase + N)
• Alligator clips (blue) (x2)
• Alligator clips (black) (x4)
• Set of cable markers
• Mains power cable
• Mains adapter MA-C8
• Set of 2 test leads (stack and non-stackable, blue, 7 in.)
• Set of 2 test leads (non-stackable, blue, 79 in.)
• USB Cable

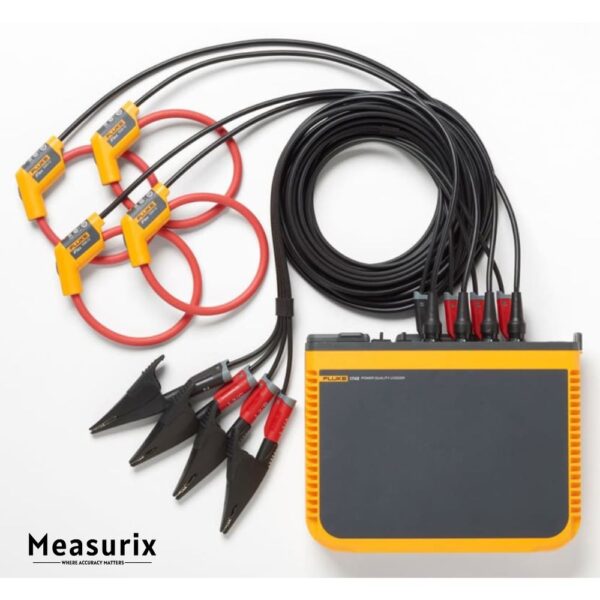

• i17xx-flex1500IP 24 inch current probes (x4)
• WiFi/BLE-to-USB Adapter
