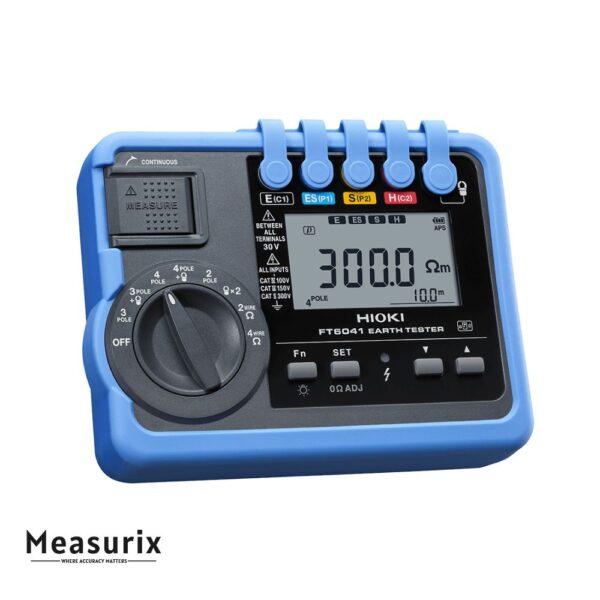

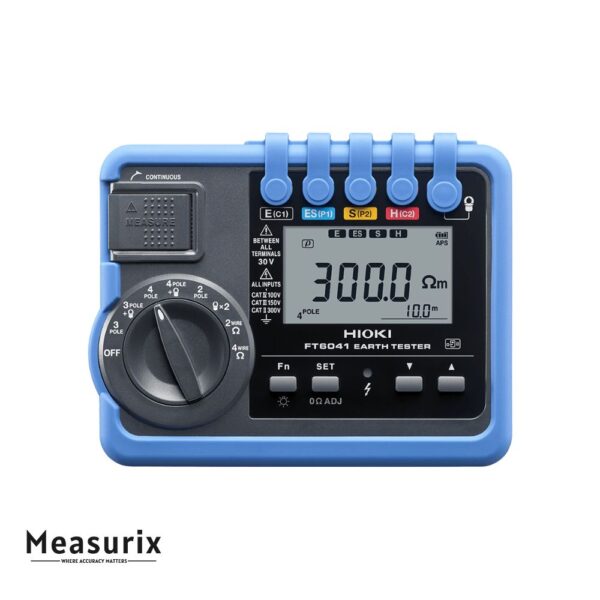

Hioki FT6041 Earth Tester

The Hioki FT6041 is a state-of-the-art earth resistance tester that provides comprehensive solutions for ground resistance measurement. It supports multiple measurement methods, including the 4-pole method for soil resistivity, the 3-pole method for precise ground resistance, and the MEC (Measuring Earth with a Clamp) function, which allows for testing without disconnecting electrodes. This feature is particularly beneficial for facilities that require continuous operation, such as data centers and hospitals, as it eliminates the need to shut down power during testing.

Designed for durability, the FT6041 boasts an IP67 rating, ensuring resistance to dust and water, making it suitable for use in challenging outdoor environments. Its operating temperature range from -25°C to 65°C allows for reliable performance in extreme conditions. The tester also features a drop-proof design, capable of withstanding drops from up to 1 meter, and excellent noise resistance, enabling stable measurements even in environments with high ground potential.

For enhanced usability, the FT6041 offers fast measurement capabilities, displaying results in just 6 seconds using the 3-pole method. Its cord rewinding mechanism is designed to prevent tangling and twisting, streamlining the measurement process. Additionally, the tester supports wireless data transfer to mobile devices via the GENNECT Cross app, facilitating easy data management and reporting.

Features

• Multiple Measurement Methods: Supports 4-pole, 3-pole, 2-pole, and MEC methods for versatile ground resistance testing.
• MEC Function: Allows for ground resistance measurement without disconnecting electrodes, enhancing safety and efficiency.
• IP67 Protection: Dustproof and waterproof design ensures reliable operation in harsh environments.
• Wide Operating Temperature Range: Functions effectively in temperatures from -25°C to 65°C.
• Drop-Proof Design: Withstands drops from up to 1 meter, ensuring durability in the field.
• Fast Measurement: Displays results in just 6 seconds using the 3-pole method.
• Cord Rewinding Mechanism: Prevents tangling and twisting, streamlining the measurement process.
• Wireless Data Transfer: Supports data transfer to mobile devices via the GENNECT Cross app for easy data management.
• High Noise Resistance: Ensures stable measurements even in environments with high ground potential.
• Long Battery Life: Provides up to 500 measurements per battery charge, reducing the need for frequent replacements.

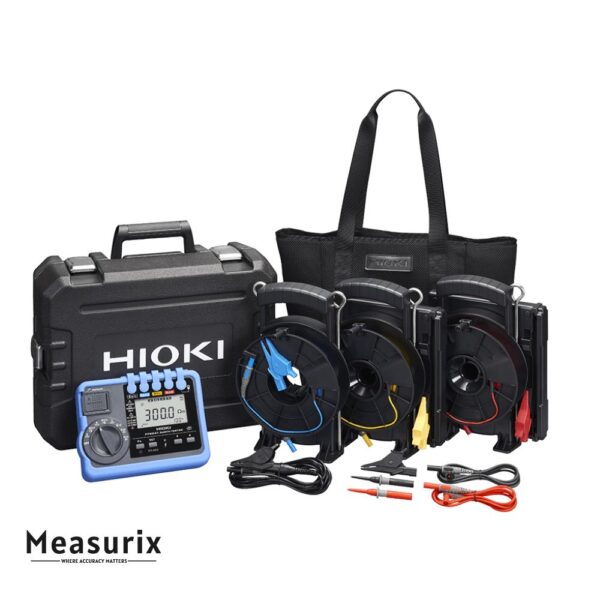

Includes

• Auxiliary Earthing Rod L9840 (2 piece set) ×2
• Measurement Cable L9845-31 ×1
• Measurement Cable L9845-33 ×1
• Measurement Cable L9845-52 ×1
• Measurement Cable L9841 ×1
• Test Lead L9787 ×1
• Earth Nets Module L9846 ×2
• Carrying Case C0208 ×1
• Carrying Case C0209 ×1
• Protector ×1, LR6 Alkaline battery ×4
• Instruction manual ×1
• Operating precautions ×1
