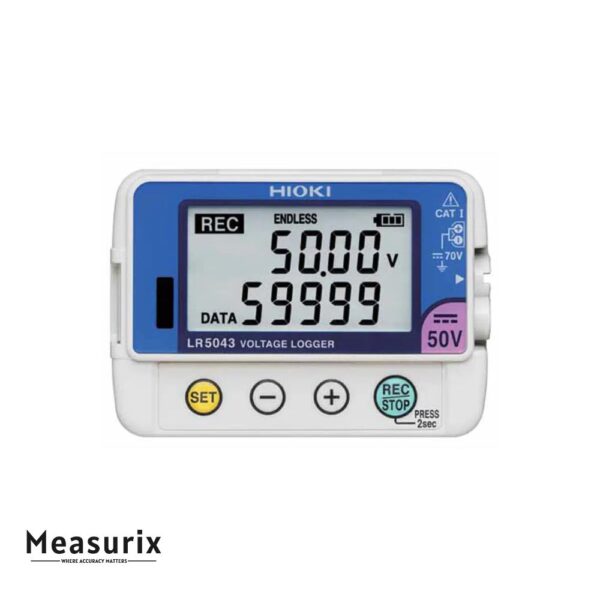

Hioki LR5043 Voltage Logger

The Hioki LR5043 is a portable voltage data logger that measures DC voltage over one channel using an external sensor (sold separately). It boasts a wide measurement range from −50.00 V to +50.00 V, depending on the external sensor used. The device features a basic accuracy of ±0.5% of reading ±5 digits (at 0.0 °C to 35.0 °C). With a memory capacity of 60,000 data points in instantaneous value mode and 15,000 data points in statistical value mode, it ensures ample storage for long-term monitoring. The logger supports recording intervals from 1 to 30 seconds and 1 to 60 minutes, offering flexibility to suit various monitoring needs. It is equipped with a dual display for easy viewing of measurements and can transfer data to a PC even during recording. The LR5043 is designed to operate continuously, even during battery replacement (within a 30-second limit), ensuring uninterrupted data logging. Its IP54 rating provides protection against dust and splashes, making it suitable for use in demanding environments. The device is powered by a single LR6 (AA) alkaline battery, with a battery life of approximately 2 years under typical usage conditions.

Features

• Wide Measurement Range: Measures DC voltage from −50.00 V to +50.00 V, depending on the external sensor used.
• High Accuracy: Basic accuracy of ±0.5% of reading ±5 digits (at 0.0 °C to 35.0 °C).
• Large Memory Capacity: Stores up to 60,000 data points in instantaneous value mode and 15,000 data points in statistical value mode.
• Flexible Recording Intervals: Supports recording intervals from 1 to 30 seconds and 1 to 60 minutes.
• Dual Display: Features an easy-to-read dual display for simultaneous viewing of measurements.
• Continuous Operation: Allows data transfer to a PC even during recording and supports battery replacement within a 30-second window without interrupting data logging.
• IP54 Rating: Provides protection against dust and splashes, suitable for use in various environments.
• Long Battery Life: Powered by a single LR6 (AA) alkaline battery with a battery life of approximately 2 years under typical usage conditions.
• Compact and Lightweight: Designed for easy mounting in tight spaces, enhancing installation flexibility.
• Data Backup: Ensures data is preserved even if the battery dies or is replaced, with a built-in backup function to prevent data loss.

Includes

• LR6 (AA) Alkaline battery (built-in internal) ×1
• Connection cable LR9802 ×1
• Instruction manual ×1
• Operation guide ×1
• Kickstand ×1
