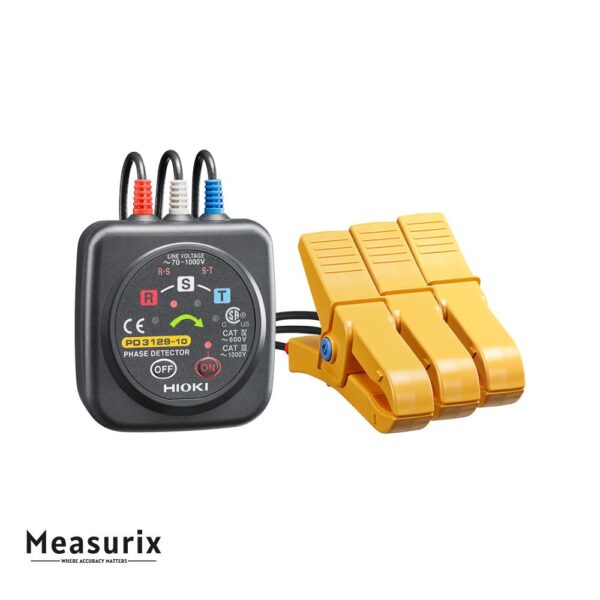

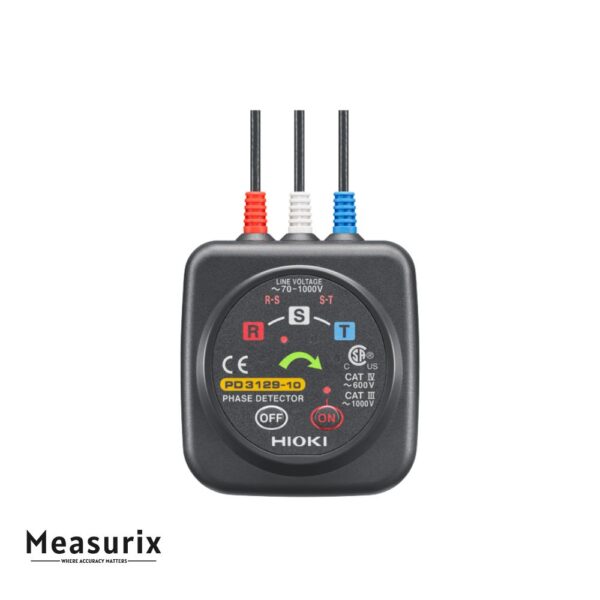

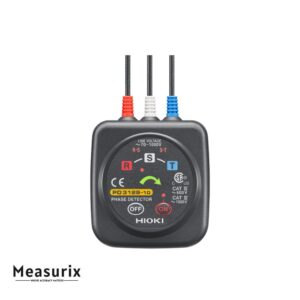

Hioki PD3129-10 Phase Detector

The PD3129-10 enables safe and fast phase determination without exposing live conductors. You simply clip its insulated, non-metallic sensors around the individual phase wires (within 7 mm to 40 mm diameter). It then uses static induction sensing to detect voltage and determine which way the phase order is flowing. In a correct (positive) sequence, the arrow indicator lights up, LEDs flash in clockwise order, and the buzzer chirps intermittently; in reverse sequence, LEDs flash counterclockwise and a continuous tone is sounded. It also has a live line check: when clips are applied, it confirms that voltage is present before sequence detection. The unit turns off automatically if idle for 15 minutes, supports operation for many hours on two AA batteries, and features magnets on the back so it can be affixed to metal panels for hands-free use. Safety is built in: it’s rated for high measurement categories, allowing it to be used in industrial environments with confidence.

Features

• Non-metallic clip sensors allow safe contactless phase detection through insulation.
• Voltage detection range: 70 V to 1000 V AC (sine wave).
• Frequency range: 45 Hz to 66 Hz.
• Phase sequence indication: LEDs rotating (clockwise or counterclockwise) and arrow plus buzzer feedback (intermittent for positive, continuous for reverse).
• Live line check function (indicates if voltage is present before phase detection).
• Auto power-off after 15 minutes of inactivity.
• Powered by two AA batteries, typically giving around 70 hours of use.
• Back magnets for hands-free mounting on panels.
• Safety ratings suited to industrial environments (CAT IV 600 V / CAT III 1000 V).
• Insulated wire diameter support: from 7 mm up to 40 mm.

Includes

• Carrying case ×1
• Strap ×1
• Spiral tube ×1
• Instruction manual ×1
• AA alkaline battery(LR6) x 2
