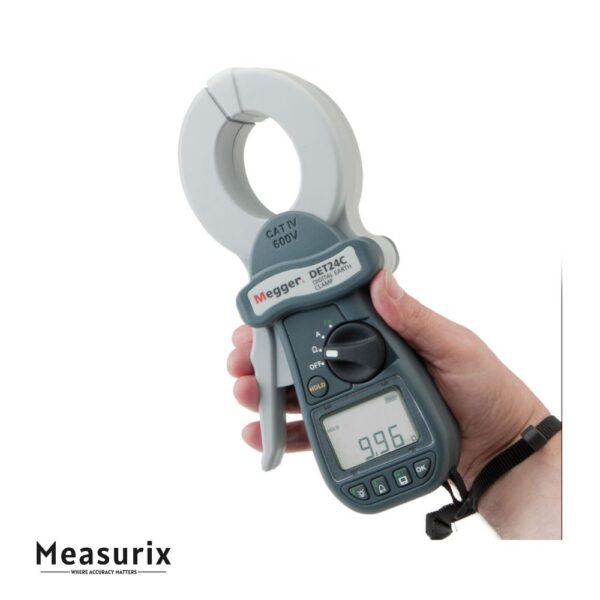

Megger DET24C Digital Earth Clamp Testers

The Megger DET24C is engineered to provide accurate measurements of ground resistance and leakage current without the need to disconnect the system under test. It features a large elliptical clamp head that accommodates cables up to 37 mm in diameter and earth tapes up to 50 mm wide, facilitating testing in confined spaces.

This instrument offers a wide measurement range for ground resistance, from 0.05 Ω to 1500 Ω, and true RMS leakage current measurements from 0.5 mA to 35 A. The backlit LCD display ensures visibility in low-light conditions, and the unit is designed with a CAT IV 600 V safety rating, making it suitable for use in high-voltage environments.

The DET24C is powered by four AA alkaline batteries, providing up to 24 hours of continuous operation. It includes features such as data hold, audible alarms, and a noise filter function to enhance measurement accuracy in electrically noisy environments.

Additionally, the DET24C offers advanced features like onboard memory for storing up to 2000 test results, which can be downloaded to a PC via Bluetooth or USB interface. This functionality is particularly useful for data analysis and record-keeping.

Features

• Measurement Range: Accurately measures ground resistance from 0.05 Ω to 1500 Ω and leakage current from 0.5 mA to 35 A.

• Elliptical Clamp Head: Accommodates cables up to 37 mm in diameter and earth tapes up to 50 mm wide, improving access in confined spaces.

• True RMS Measurements: Ensures accurate readings of varying current waveforms.

• Backlit LCD Display: Provides clear visibility in low-light conditions.

• Safety Rating: CAT IV 600 V, suitable for high-voltage environments.

• Long Battery Life: Up to 24 hours of continuous operation on four AA alkaline batteries.

• Data Hold Function: Freezes the current measurement for easy recording.

• Audible Alarms: Alerts users to out-of-range measurements.

• Noise Filter Function: Improves accuracy in electrically noisy environments.

• Advanced Data Management: Stores up to 2000 test results with time and date stamps; data can be downloaded via Bluetooth or USB interface.

Includes

• 1007-331 Megger DET24C Digital Earth Test Clamp-on Meter
• 1001-715 Carry Case
• 1001-716 Carrying Strap
• 1001-198 User Guide CD Rom
• 1001-198 Calibration Check
• 25511-841 Battery 4xAA (Alkaline)
• 90001-434 Usb Irda Dongle
• 1000-576 Power DB Lite Software
