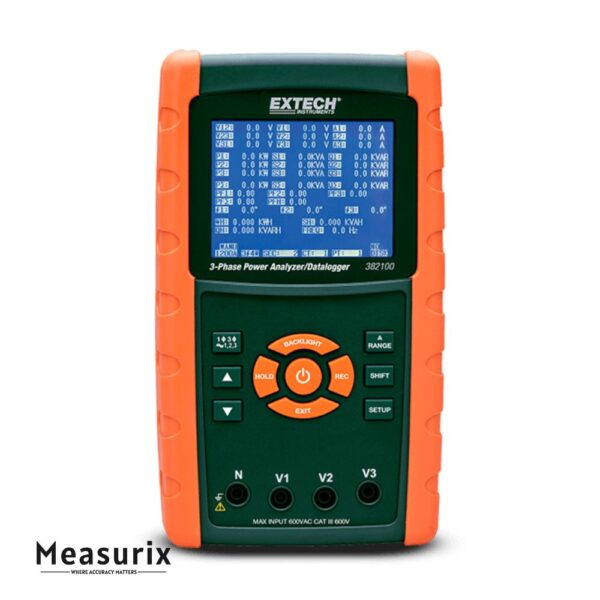

Extech 382100 1200A 3-Phase Power Analyzer/Datalogger

The 382100 is built to handle demanding power measurement tasks across single-phase and three-phase electrical systems (including 3-wire and 4-wire configurations). It supports true-RMS measurements up to 600 V AC and 1200 A AC via included clamp probes, and it allows setting CT (current transformer) and PT (potential transformer) ratios so it can scale for high-power distribution environments. The analyzer displays a rich set of parameters (voltage, current, active/reactive/apparent power for each phase and for the system, power factor, energy totals, phase angles, frequency) on a large backlit LCD that remains legible in bright or industrial lighting. For data collection, it logs tens of thousands of data sets onto a removable SD card, exportable in spreadsheet-compatible format for post-analysis. Sampling intervals are user-programmable from seconds up to hours, enabling both transient capture and long-term monitoring. The unit is housed in a rugged enclosure with safety rating suitable for industrial sites. In sum, this instrument is a turnkey solution for commissioning, auditing and troubleshooting power systems in industrial or commercial settings.

Features

• Supports voltage up to 600 V AC and current up to 1200 A AC via included clamp probes and scalable via CT/PT ratio adjustments.

• Capable of analysing single phase or full three-phase systems (3-wire or 4-wire), covering phase-to-phase and phase-to-ground measurements.

• Displays up to 35 different electrical parameters including voltage, current, KW/KVA/KVAR (phase and system), power factor, phase angle and energy totals.

• Large high-contrast dot-matrix backlit LCD for clear display of multiple simultaneous parameters in the field.

• Data logging onto removable SD card in Excel-compatible format; logs up to tens of thousands of measurement sets with user-selectable sample intervals (from ~2 seconds up to 2 hours).

• Adjustable CT ratio (for current scaling) and PT ratio (for voltage scaling) to handle high-power installation measurement setups.

• Rugged design with industrial safety rating (CAT III-600 V), suitable for use in switched distribution environments.

• Exportable measurement data for post-analysis in spreadsheets, facilitating in-depth diagnostics, trend analysis and reporting.

• Included accessories typically encompass three current clamps, voltage test leads/alligator clips, SD card, AC adapter and carrying case, enabling immediate deployment.

• Flexible measurement modes accommodate energy audits, motor/generator testing, power quality evaluation and long-term efficiency monitoring.

Includes

• Three current clamps
• Four voltage leads with alligator clips
• Eight AA batteries
• SD memory card
• Universal AC adapter (100 to 240 V)
• Case
• User manual
