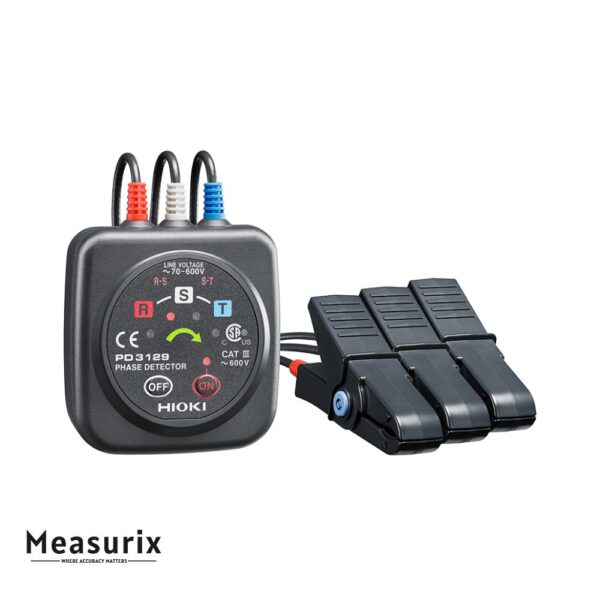

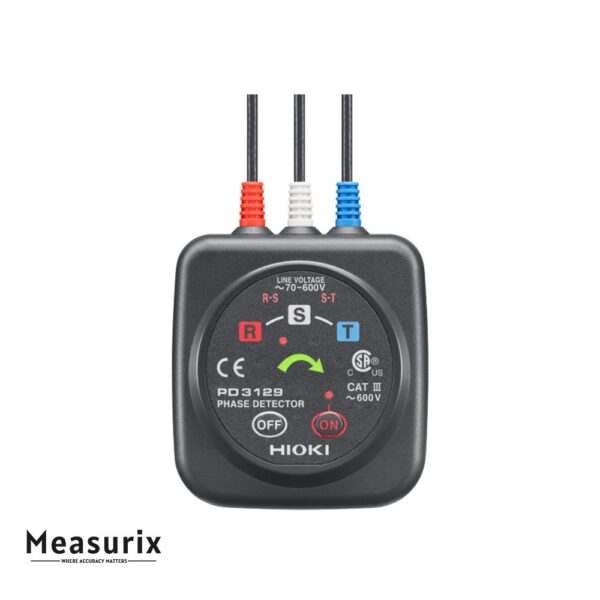

Hioki PD3129 Phase Detector

The PD3129 is a handheld device designed for safe and reliable phase sequence testing in three-phase power systems. You simply clip its insulated, non-metallic voltage sensors onto the individual phase conductors (within specified diameter limits). The device then uses static induction detection to sense voltages and determine the phase order: in a normal sequence (positive), LEDs blink clockwise and a green arrow illuminates with intermittent beeps; if reversed, the LEDs blink counterclockwise and a continuous tone is heard. It also includes a live line check feature to confirm that voltage is present before performing sequence detection. The unit uses two AA batteries, has an auto power-off after around 15 minutes of inactivity, and includes magnets on the back so it can be affixed to metal panels for hands-free work. It is built to safety standards for industrial environments.

Features

• Non-metal contact (non-metallic clip) design for safer phase detection through insulation.
• Voltage range: ~70 to 600 V AC (continuous, sine wave) on three-phase systems.
• Frequency support: 45 Hz to 66 Hz.
• Phase indication: LED rotation (clockwise for positive, counterclockwise for reverse), arrow indicator, and buzzer (intermittent for normal, continuous for reverse).
• Live line check: confirms there is voltage before phase detection.
• Auto power-off after 15 minutes to conserve battery.
• Magnetic base: allows the instrument to be secured on metal panels for hands-free use.
• Long battery life: ~70 hours of continuous use with two AA batteries.
• Safe rating: CAT III 600 V for the PD3129 version.
• Compact and lightweight: convenient for field use.

Includes

• Carrying case ×1
• Strap ×1
• Spiral tube ×1
• Instruction manual ×1
• AA alkaline battery(LR6) x 2
